01

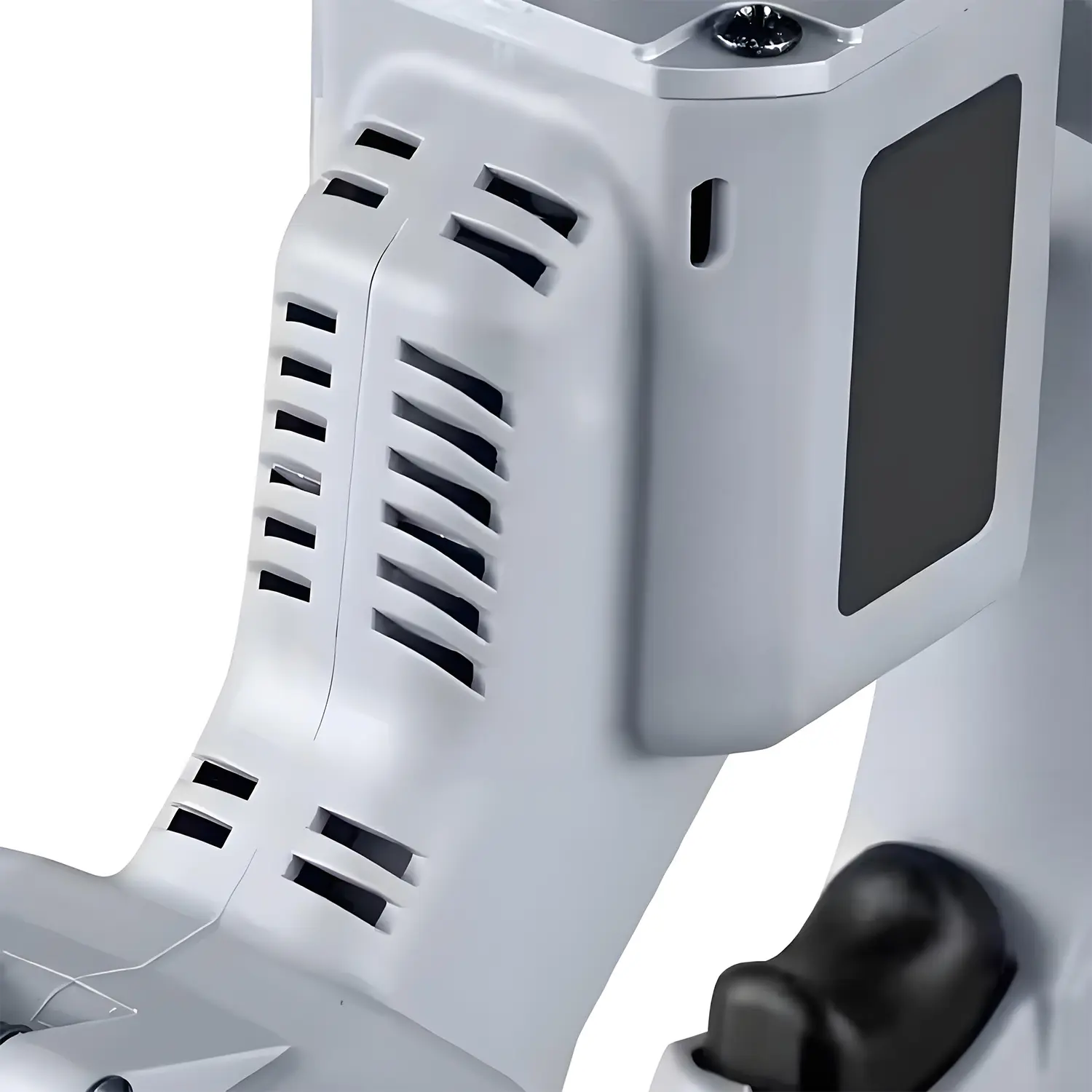

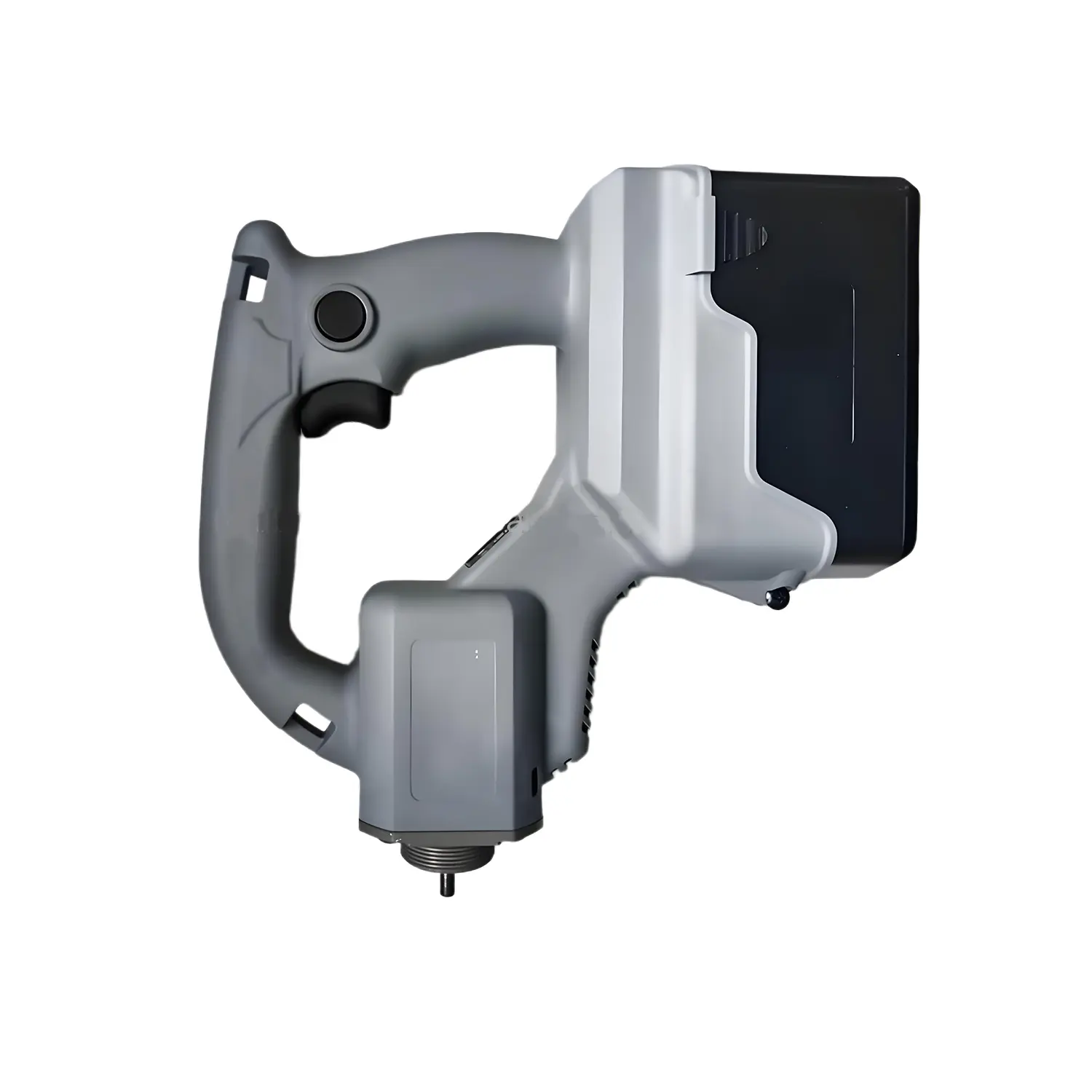

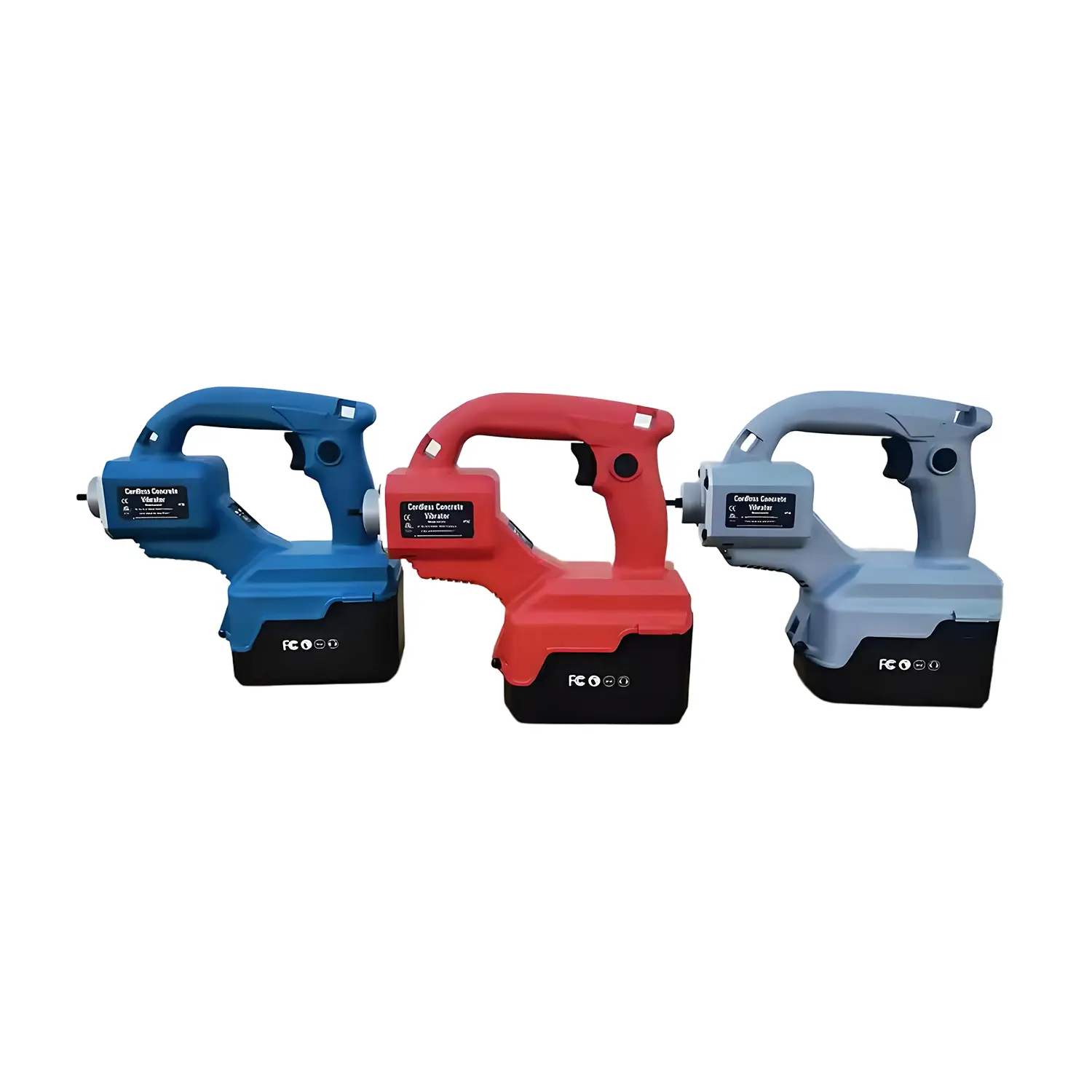

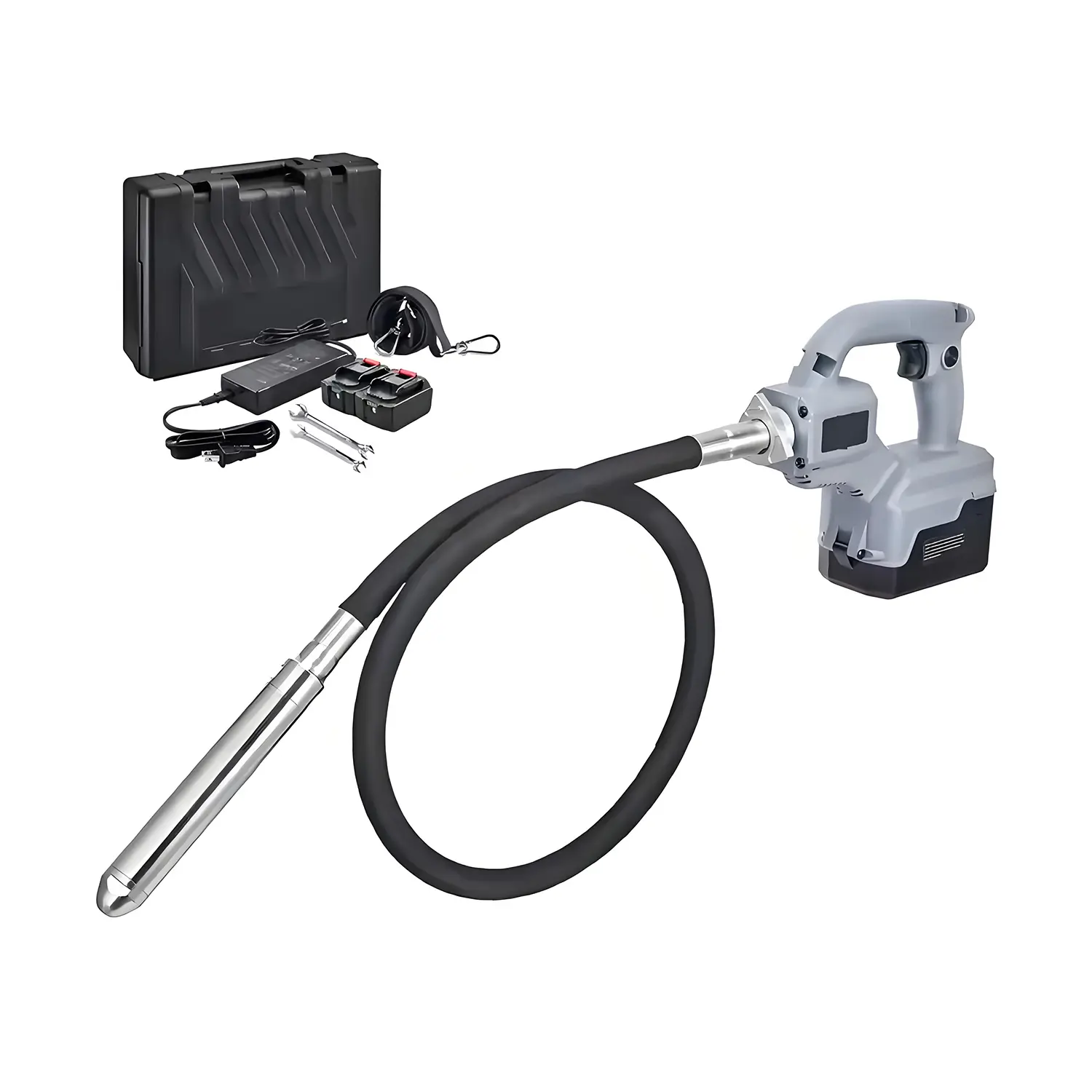

Brushless Lithium Electric Concrete Vibrator Cordless Cement Vibrator Portable Construction Engineering Vibrator
Key Attributes
| Drive Mode | Electric Vibrator | Frequency | 960--3000r/min |
| Vibrating Amplitude | 2-5mm | Length of Flexible Shaft | Standard |
| Voltage | 18V,21V | Core Components | Bearing |
| Place of Origin | China | Weight | 3kg |
| Warranty | 3 months | UNIQUE SELLING POINT | Long lifetime |
| Video outgoing- inspection |
Provided | Machinery Test Report | Provided |
| Type | SURFACE | vibration frequency | 230Hz |
| Battery | Li-battery | Maximum amplitude: | 1mm |
| current | 3.0AH,4.0AH,6.0AH | No-load speed | 0-3500RPM |
Product Specification
| Product name: | Cordless Concrete Vibrator | |
| Model: | MC5220 | |
| Motor: | DC Brushless Permanent Magnet Synchronous Motor | |
| Power(Max): | 800(W) | |
| Rated Voltage | 18(V) | |
| Vibrations Per Minute: | Normal Mode: 12,000(VPM) | Power Mode: 15,500(VPM) |

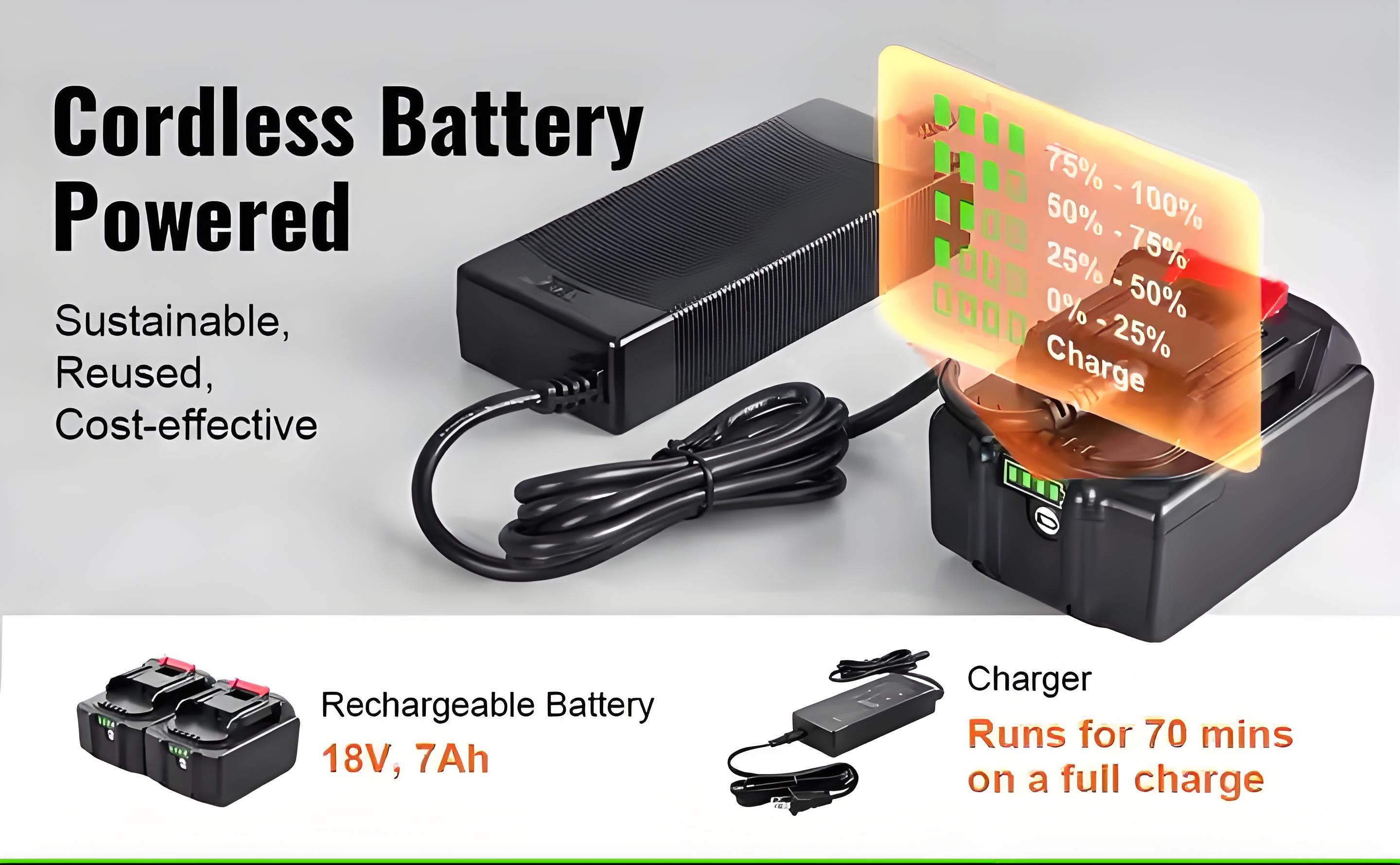

| Battery Pack: | Standard Battery: High Capacity Battery: |
BL1870-7.0Ah (Panasonic Cell 18650) BL18100-10.0Ah (Samsung Cell 21700) |
| Battery Charger: | Model No.:GM130-2100500-D Input:100-240V 50/60Hz 2.5A Output:21.OV 5.0A; 105.0W |
|
| Charging Time | Standard Battery: High Capacity Battery: |
90Min 120Min |
| Working Capacity(Battery Life)*1: | Normal Mode: Power Mode: |
60min(7.0Ah)/90min(10.0Ah) 30min(7.0Ah)/60min(10.0Ah) |
| Net weight(*2): | 1.92kg | |
Product Features
• Long - lasting and Durable: Constructed with high-quality carbon steel, this vibrator withstands frequent use in tough environments. Its brushless design, along with a 6 - month guarantee on the bearing, ensures a long lifetime, reducing the need for frequent replacements.
• High - performance Vibration: With adjustable vibration settings, users can customize the amplitude and frequency according to specific project requirements. Whether it's small-scale repairs or large construction projects, the vibrator delivers consistent and efficient concrete compaction.
• Cordless and Portable: The battery-powered operation eliminates the hassle of cords, allowing for greater mobility on job sites. Its lightweight 3 kg build makes it easy to transport between different locations, enhancing productivity.
• Energy - efficient: The combination of the electric motor and battery provides energy-efficient performance, minimizing power consumption while maintaining high - level functionality.
• High - performance Vibration: With adjustable vibration settings, users can customize the amplitude and frequency according to specific project requirements. Whether it's small-scale repairs or large construction projects, the vibrator delivers consistent and efficient concrete compaction.
• Cordless and Portable: The battery-powered operation eliminates the hassle of cords, allowing for greater mobility on job sites. Its lightweight 3 kg build makes it easy to transport between different locations, enhancing productivity.
• Energy - efficient: The combination of the electric motor and battery provides energy-efficient performance, minimizing power consumption while maintaining high - level functionality.
Wide Applications
Ideal for multiple industries, this concrete vibrator is used in:
• Construction Works: For compacting concrete in foundations, walls, floors, and other structural elements, ensuring strong and stable builds.
• Building Material Shops: To test and prepare concrete samples, as well as for small-scale concrete projects.
• Machinery Repair Shops: For maintenance tasks involving concrete, such as repairing concrete floors or structures within the shop.
• Manufacturing Plants: When constructing or maintaining concrete-based infrastructure, like factory floors or storage areas.
• Construction Works: For compacting concrete in foundations, walls, floors, and other structural elements, ensuring strong and stable builds.
• Building Material Shops: To test and prepare concrete samples, as well as for small-scale concrete projects.
• Machinery Repair Shops: For maintenance tasks involving concrete, such as repairing concrete floors or structures within the shop.
• Manufacturing Plants: When constructing or maintaining concrete-based infrastructure, like factory floors or storage areas.
Warranty and Support
• 3 - month Warranty: The product comes with a 3 - month warranty, offering protection against manufacturing defects.
• Test Report and Inspection: A machinery test report is available upon request, and a video outgoing-inspection can be provided for users to verify the product's quality before purchase, ensuring a worry - free buying experience.
• Test Report and Inspection: A machinery test report is available upon request, and a video outgoing-inspection can be provided for users to verify the product's quality before purchase, ensuring a worry - free buying experience.
Factory Show

Qualification Certification

FAQ
-
Q: How can i trust you and why do i choose your product ?
-
Q: What is your leading time?
-
Q:ls it right to make customer brand name?
-
Q:what is your agency / distributor policy?
