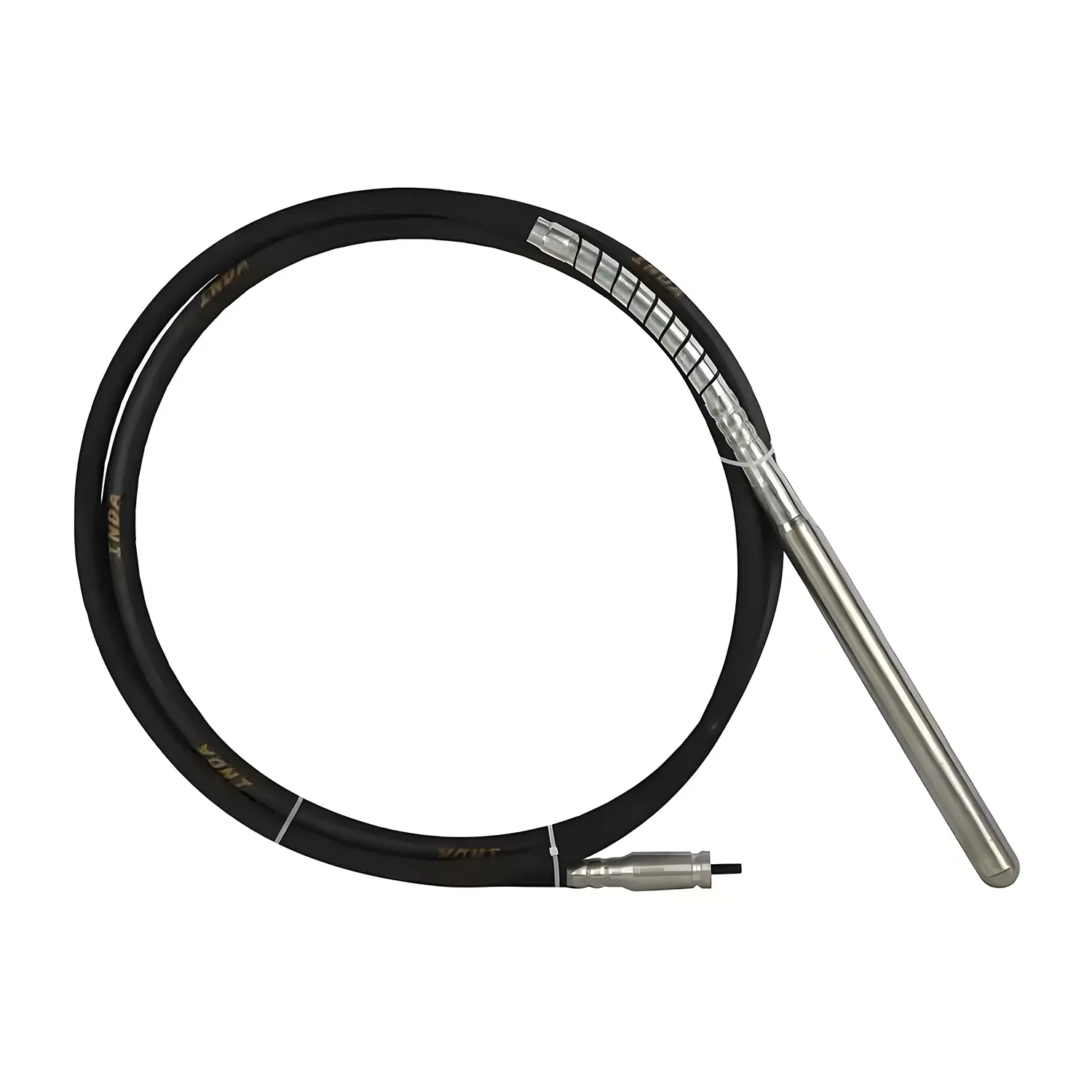

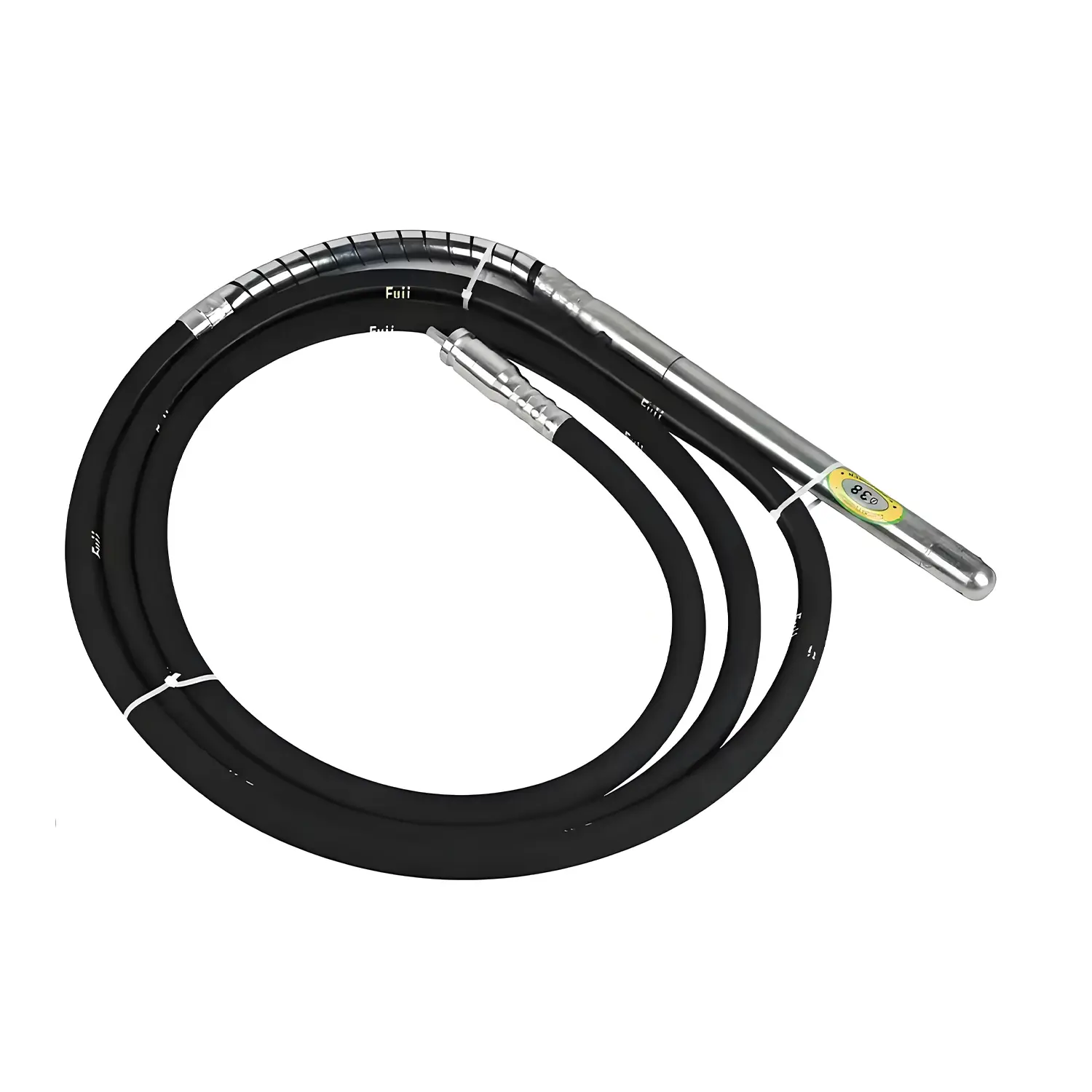

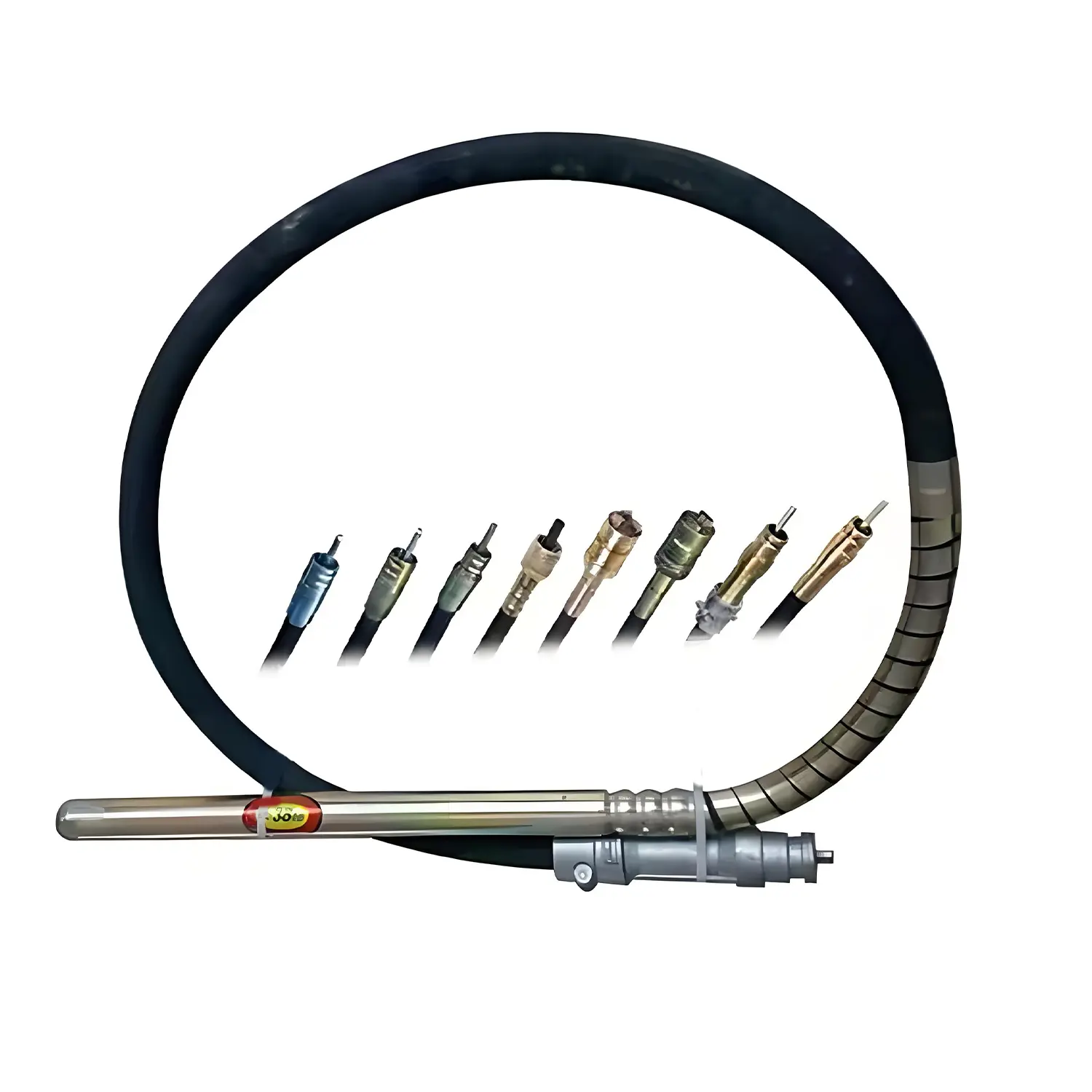

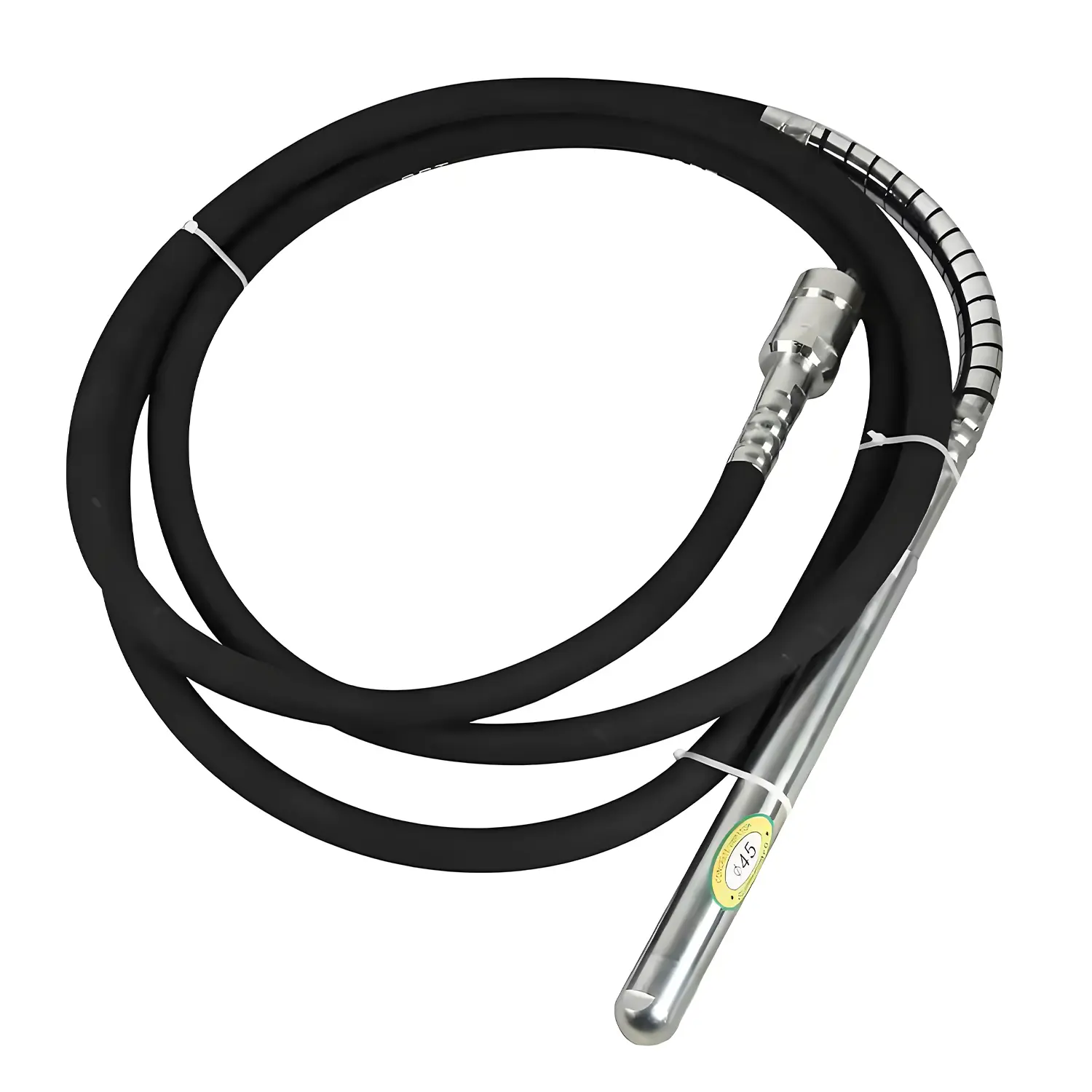

Plug-in Concrete Vibrator Electric Planetary Cement Vibrator a Grade 350 Hours Use DYNAPAC

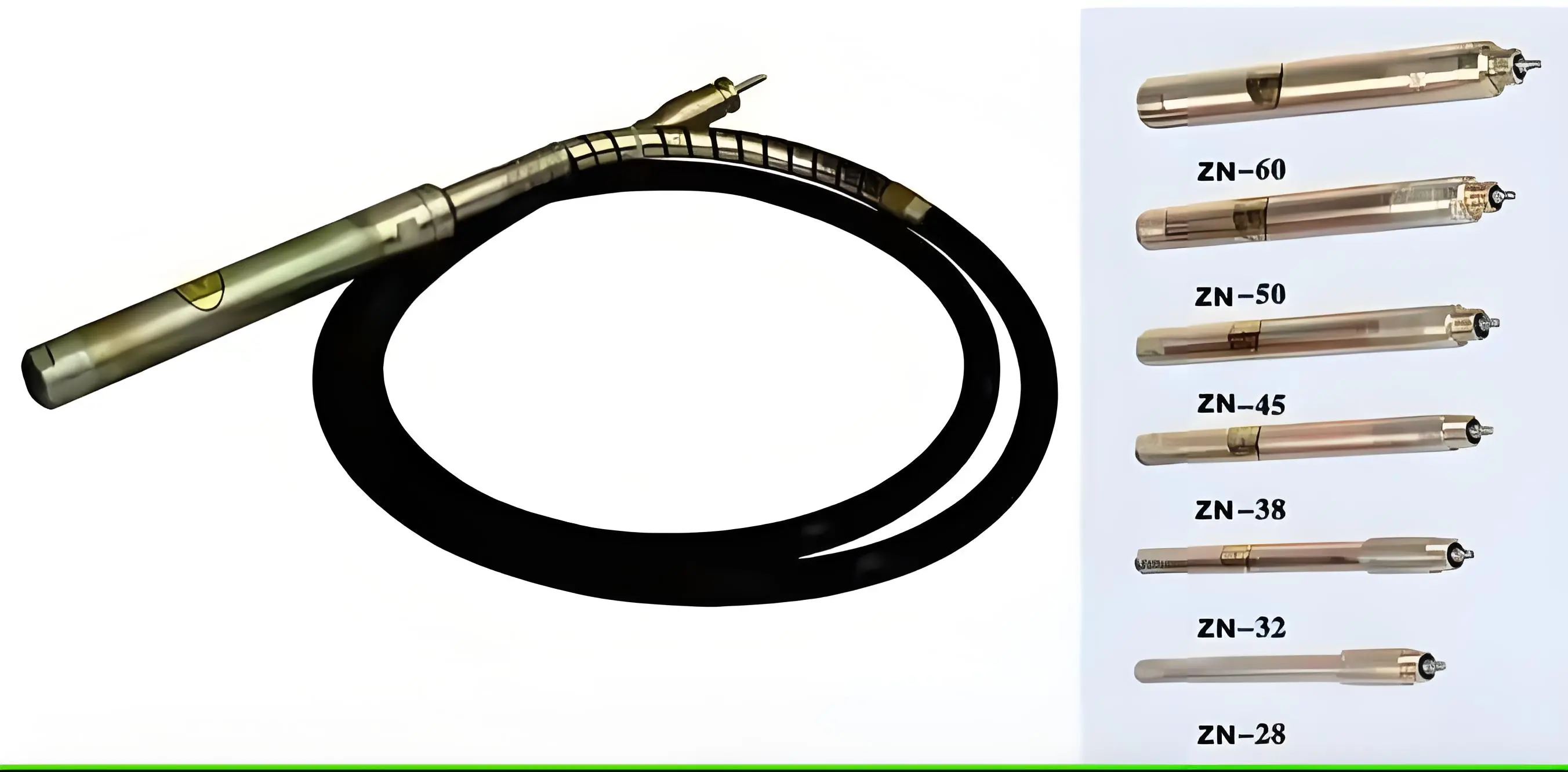

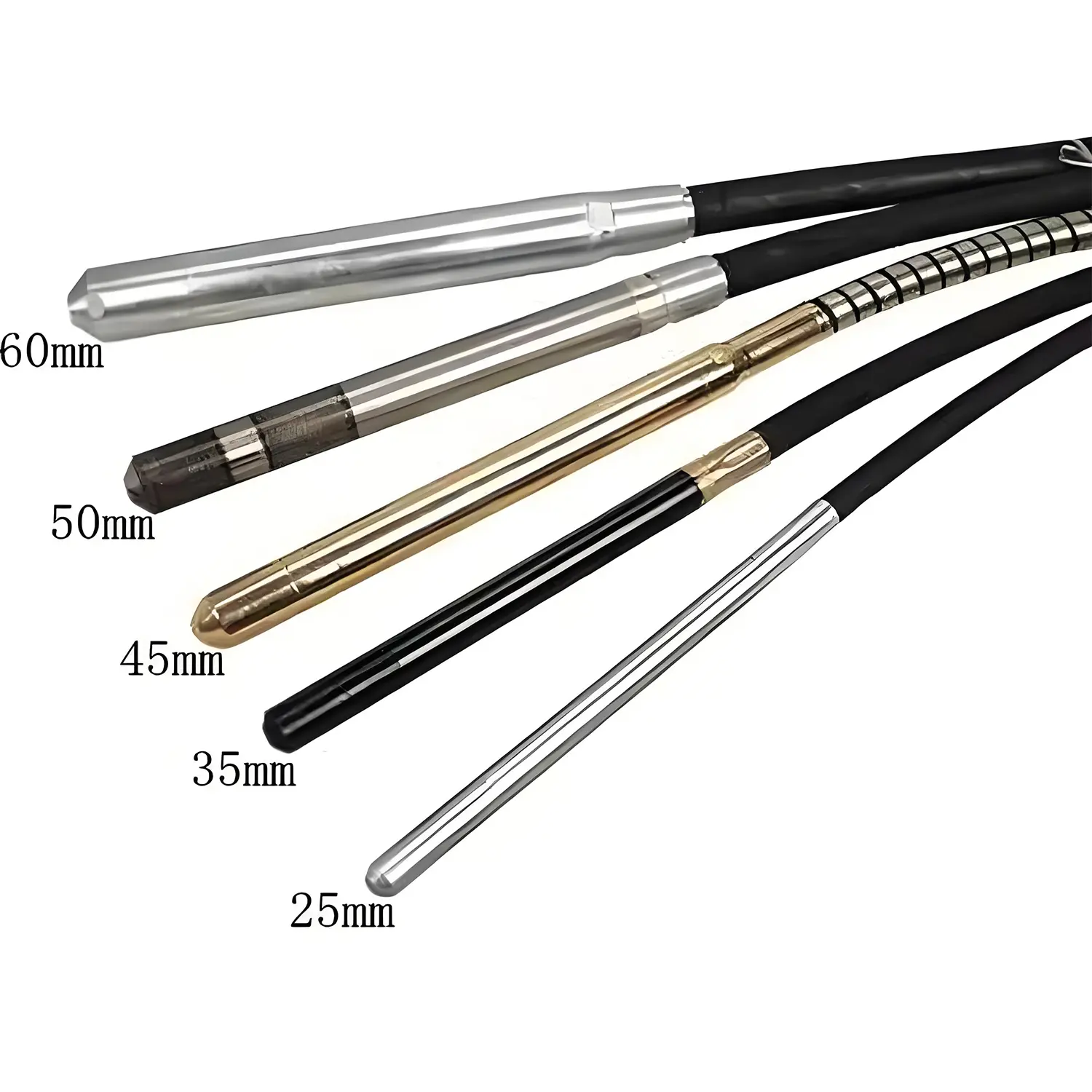

•  Vibrating Head: Encased in a stainless steel or hardened alloy casing, it houses precision-balanced eccentric weights. When rotated, these weights produce radial vibrations, which are crucial for concrete compaction. The vibrating head typically has a diameter ranging from 25 - 75mm.

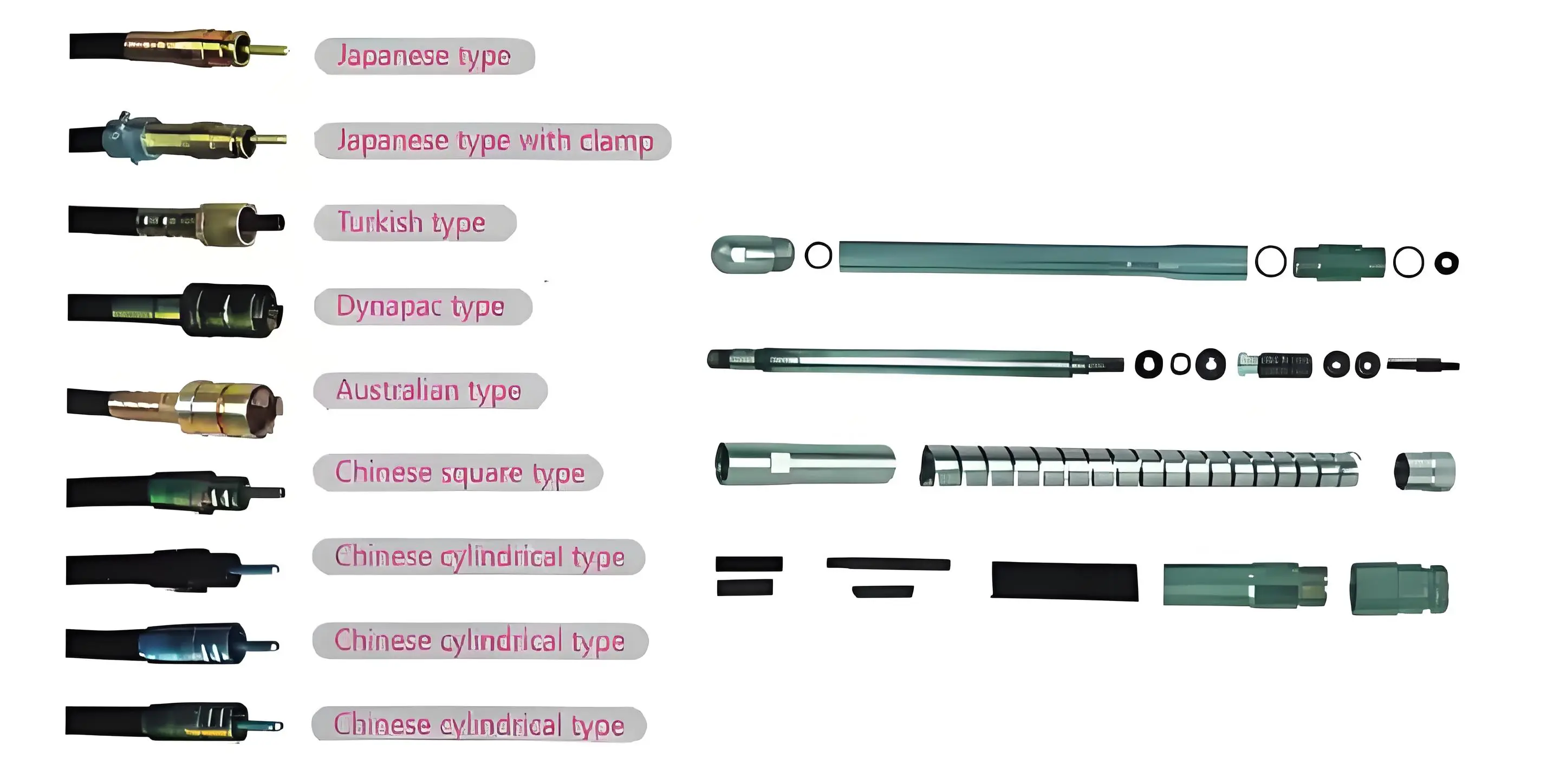

•  Flexible Shaft: A steel-wire reinforced rubber hose, usually 3 - 6m in length, serves to transmit torque from the power source. It also dampens vibrations felt by the operator, enhancing comfort during use. Additionally, modern shafts often feature graduated scales (every 200mm) for precise immersion control.
•  Power Unit: Available in electric (0.5 - 2.2kW) or pneumatic drive systems, these units are equipped with planetary gearboxes. The gearboxes use a multi-stage reduction (usually 3:1 to 5:1 ratio) to amplify motor torque and maintain consistent vibration under load.
•  Anti-Vibration Handle: Ergonomically designed, the handle significantly reduces operator fatigue during prolonged use. It also incorporates safety features such as vibration-dampened grips, which meet ISO 17066 standards.
•  Technical Specifications: With an immersion depth requirement of at least 1.5 times the formwork height, these vibrators comply with EN 12649:2008 for construction vibrators. Many models also feature an IP68 waterproof rating, allowing for submerged operation.

Planetary concrete vibrators offer outstanding performance in the construction field. Their high-frequency oscillations and powerful centrifugal force ensure thorough concrete consolidation, resulting in stronger and more durable structures. Compared to conventional poker vibrators, field testing has shown that these vibrators can achieve 22 - 35% faster consolidation and consume 40% less power per cubic meter. They are suitable for a wide range of applications, including the construction of buildings, bridges, roads, and other infrastructure projects. Whether working on large-scale mass pours or detailed precast elements, these vibrators can adapt to different concrete mixes with their modular heads, which allow for quick changes to suit specific project requirements.

•  12-Month Warranty: We provide a comprehensive 12-month warranty for our planetary concrete vibrators. This warranty covers any manufacturing defects that may occur during normal use within the specified period.
•  Free Spare Parts: In the event that an accessory malfunctions within 12 months, we will provide free spare parts with the next order. Please note that this does not apply to damage caused by human error or misuse.
•  Online Technical Support: Our technical department offers online service to address any questions or concerns regarding the operation, maintenance, or troubleshooting of our machines. Whether you need assistance with setup, performance optimization, or resolving issues, our team is ready to help.
